SpotSee® TiltWatch® Plus – Precision 360° Tilt Monitoring

When “upright” isn’t descriptive enough. The TiltWatch Plus is designed for high-value machinery and sensitive electronics that require exact orientation monitoring. Unlike binary indicators, the Plus model provides a detailed readout of the exact angle of tilt and identifies if a total 180° inversion occurred.

Advanced Monitoring Capabilities:

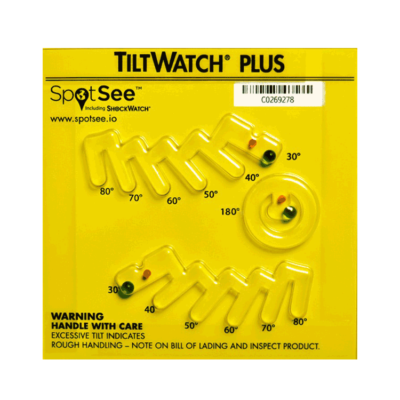

• Multi-Axis Readout: Two separate windows track the degree of tilt from 30° to 80° in 10° increments.
• Full Inversion Tracking: A third specialized window identifies if the shipment has been completely overturned (180°).
• Non-Resettable Evidence: Once the copper beads move into the designated angle slots, they cannot be moved back, providing an irreversible audit trail.
• Individually Serialised: Prevents indicator swapping and ensures total accountability in the supply chain.

Technical Handling & FAQ

What makes the ‘Plus’ different from the ‘XTR’?
The XTR is a simple “Red/White” pass-fail indicator. The Plus provides the exact degree of the tilt, which is often required for high-precision medical or aerospace equipment to determine if a recalibration is necessary after a tilt event.

Is it affected by aircraft take-off?
No. The TiltWatch Plus is specifically engineered to remain unaffected by normal aircraft takeoff angles or emergency braking during road transport.

Authorised UK Partner

As an Authorised Partner of SpotSee®, Good Life Innovations Ltd provides 25 years of technical expertise. We ensure you receive factory-fresh, serialised units with full technical support.
